Calculate Gate Source, Drain Current, and Source Voltage of a JFET

1. The problem statement, all variables and given/known data

Uploaded





2. Relevant equations

Uploaded





3. The attempt at a solution

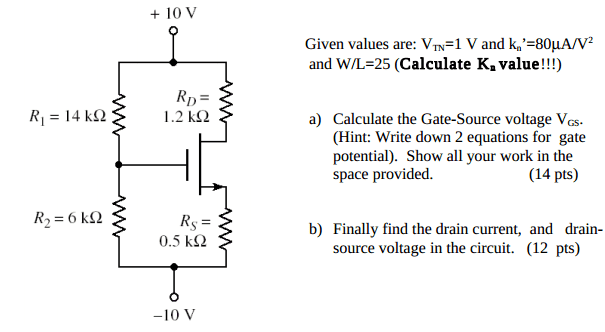

So what I started with is Vg=(R2/(R1+R2))Vdd - 10 = -7 Volts this is incorrect though I was told it is -4 V what did I do

Attached Images
